LEADING GENERATOR MANUFACTURER
For over 100 years, Baudouin has designed and manufactured the highest quality diesel engines for marine and power generation applications globally
GENERAL SPECIFICATIONS

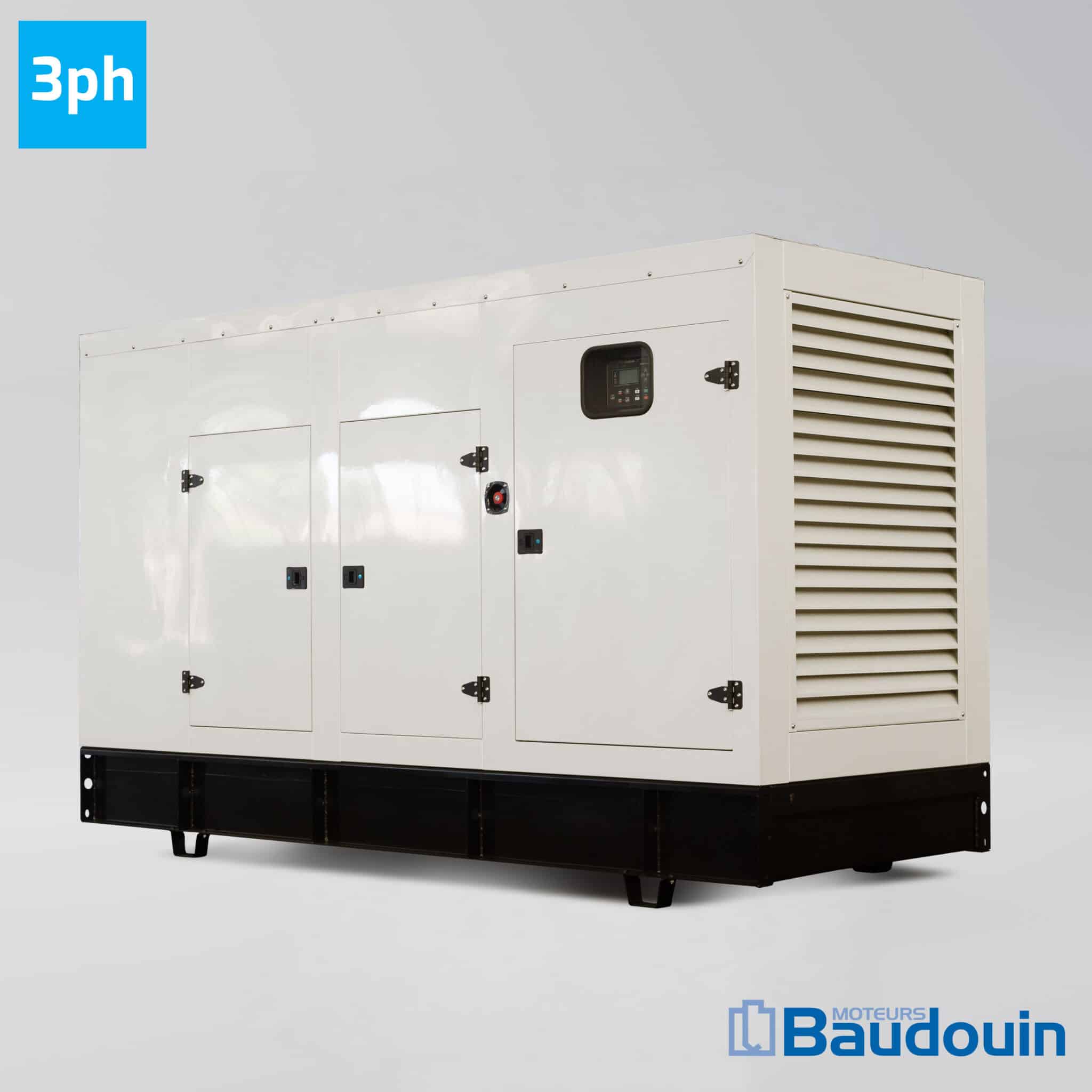

Baudouin 400kVA Diesel Generator
High-Capacity Energy Security for Intensive Demands
This 400kVA diesel generator delivers the high volume electrical output required to keep commercial buildings, manufacturing plants, and large properties fully operational. It integrates directly into your main distribution board, preventing costly downtime, data loss, and operational disruptions.
Engineered for Sustained Performance and Fuel Management

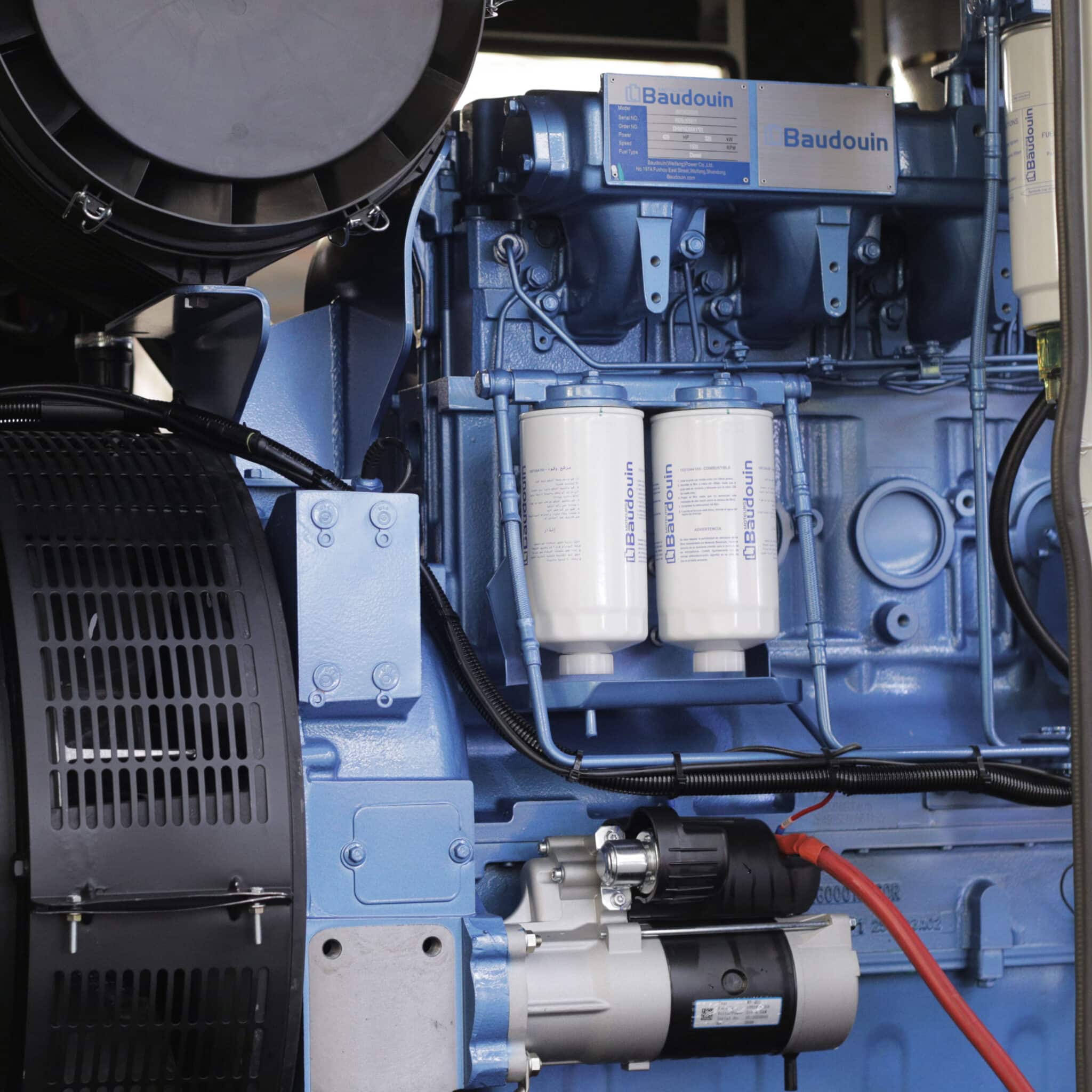

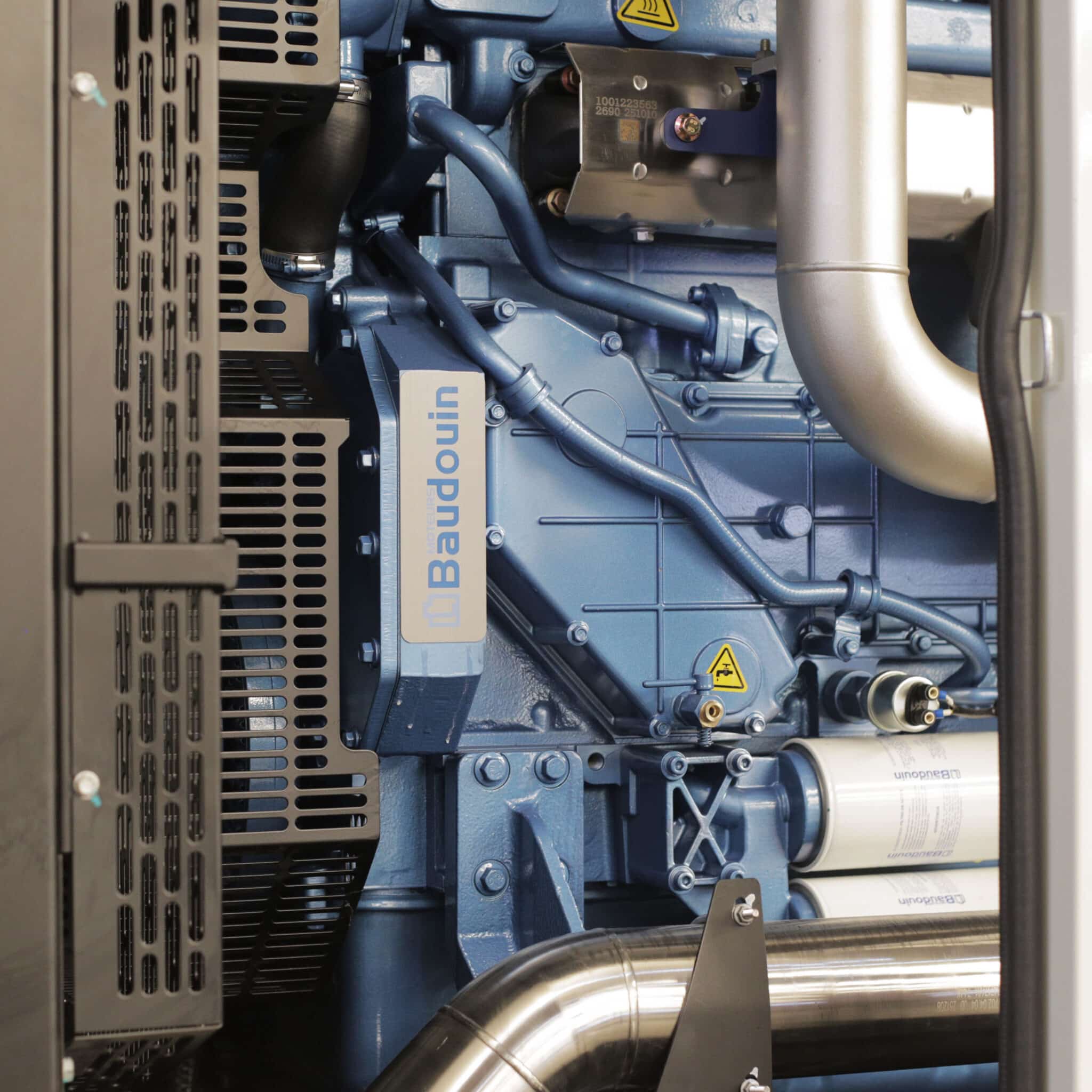

At the core of this unit is a heavy duty, inline six-cylinder Baudouin engine designed to handle sudden, large electrical loads smoothly. The integrated 860-litre fuel tank provides up to 13 hours of continuous operation at 75% load capacity, allowing your facility to navigate extended power outages without requiring frequent refueling shifts.
Weatherproof Shielding with Integrated Noise Reduction

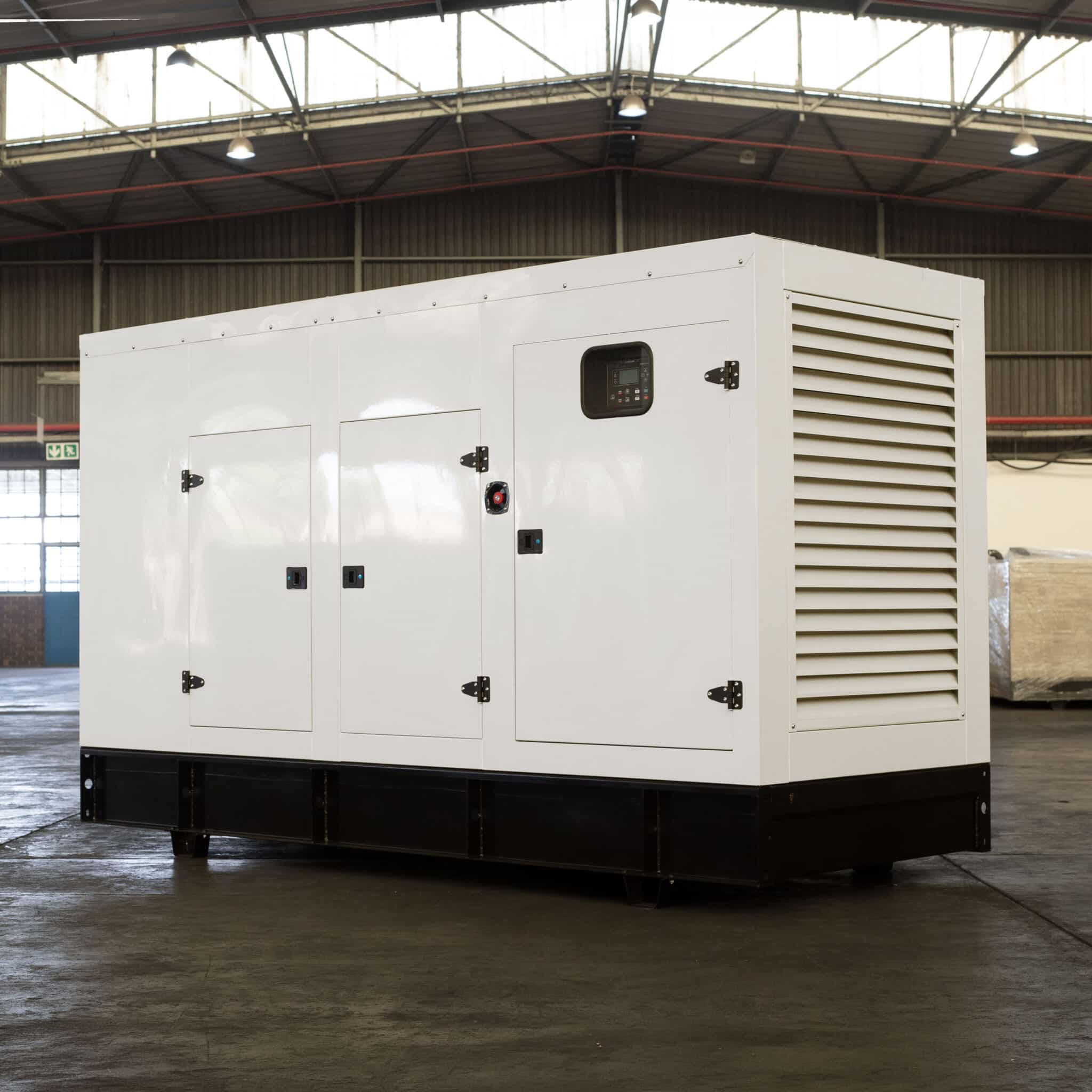

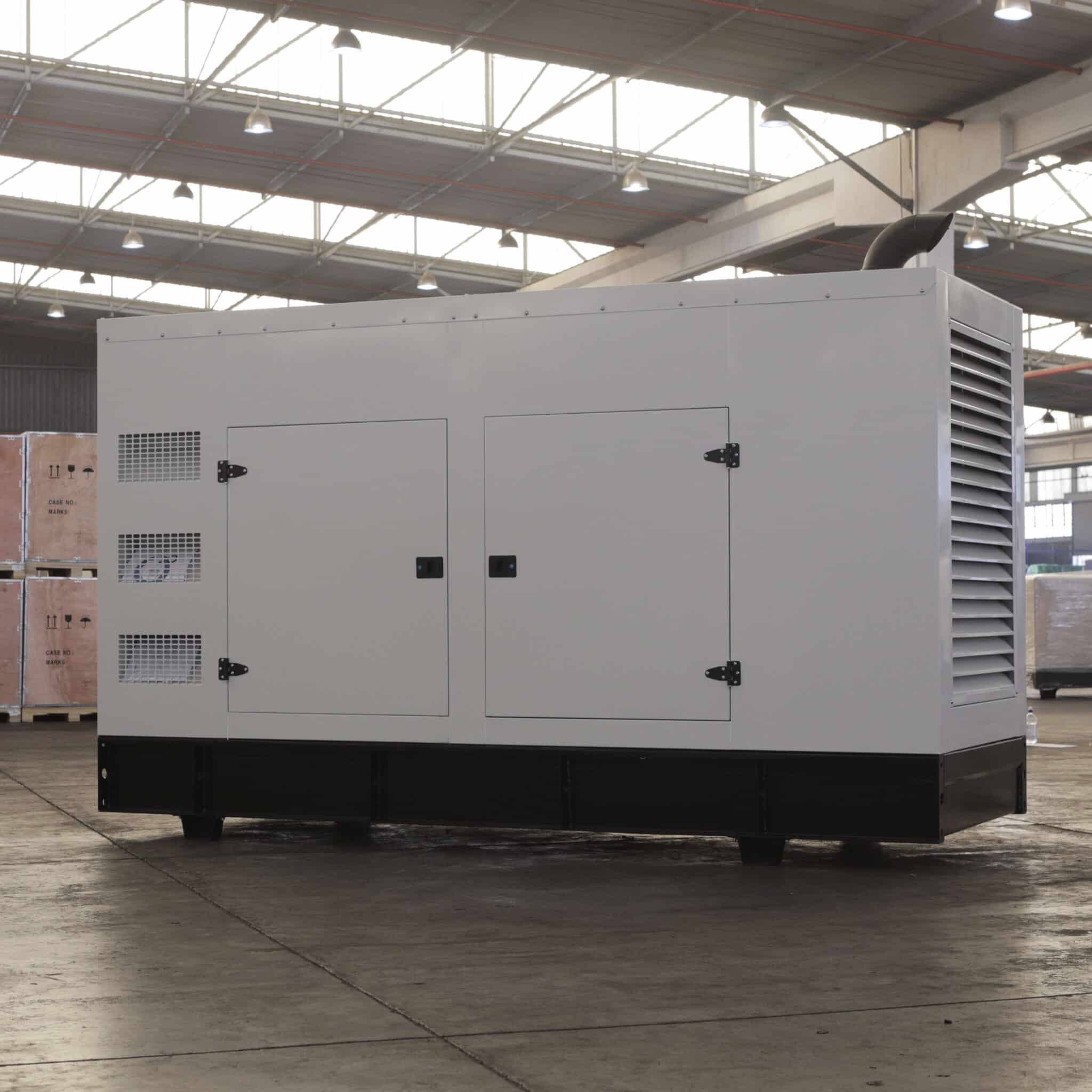

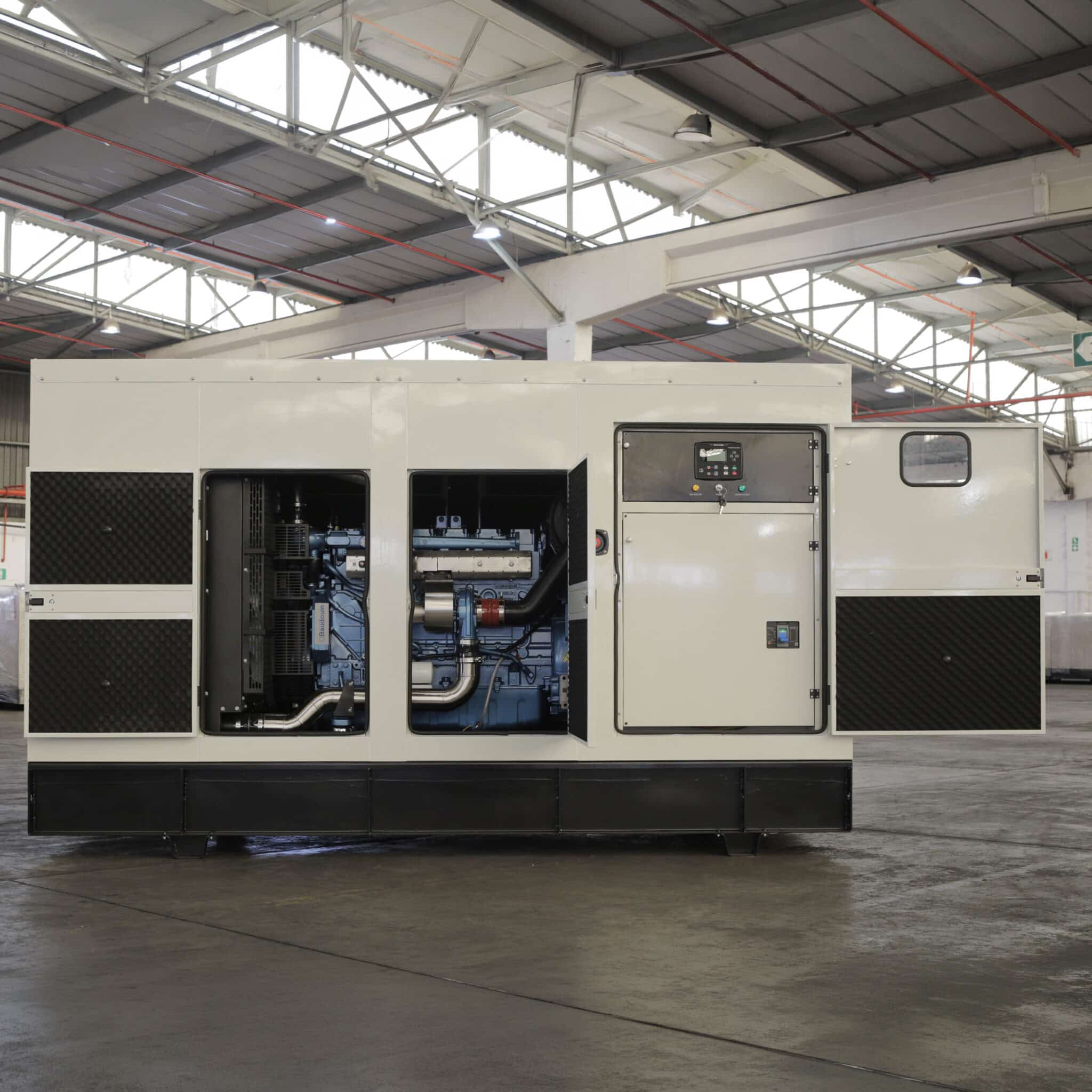

The unit is housed within a heavy-gauge, mild steel enclosure built specifically for outdoor installation. The internal acoustic insulation effectively dampens engine operating decibels to comply with standard site noise regulations, while lockable side access doors secure the internal components against unauthorised interference.
400kVA Baudouin Generator Key Features
- 440kVA Standby Capacity: Provides stable, continuous 3 phase electricity to run heavy machinery, central HVAC units and large computer networks.
- Acoustic Engineering: High density soundproofing material lines the canopy shell to lower operational noise.
- 860-Litre Onboard Tank: Large capacity fuel cell delivers up to 13 hours of continuous runtime at 75% load.
- Lockable Mild-Steel Canopy: The weatherproof exterior protects internal components and mechanical parts from rain, dust and vandalism.
- Automatic Transfer Switch (ATS): Detects utility failure instantly and automatically shifts the facility's electrical load over to the generator.
- Automated System Safeguards: Programmed with immediate safety shutdowns for high coolant temperatures, low oil pressure levels and electrical overloads.
- Digital Diagnostics Interface: The integrated control panel provides technicians with real-time visibility over voltage tracking, fuel consumption and diagnostic alerts.
- Industrial Manufacturing Standards: Built with ISO 9001 quality standards and backed by a comprehensive 24 month or 1,000-hour warranty.
